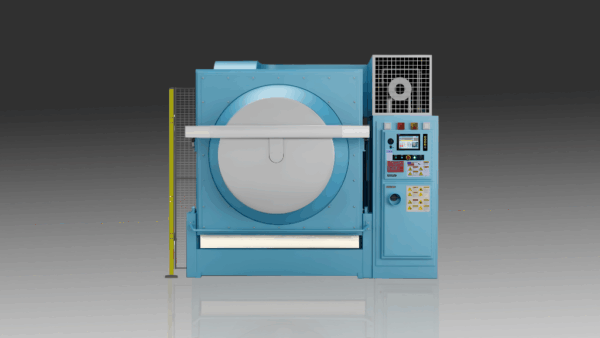

H Series Dryer

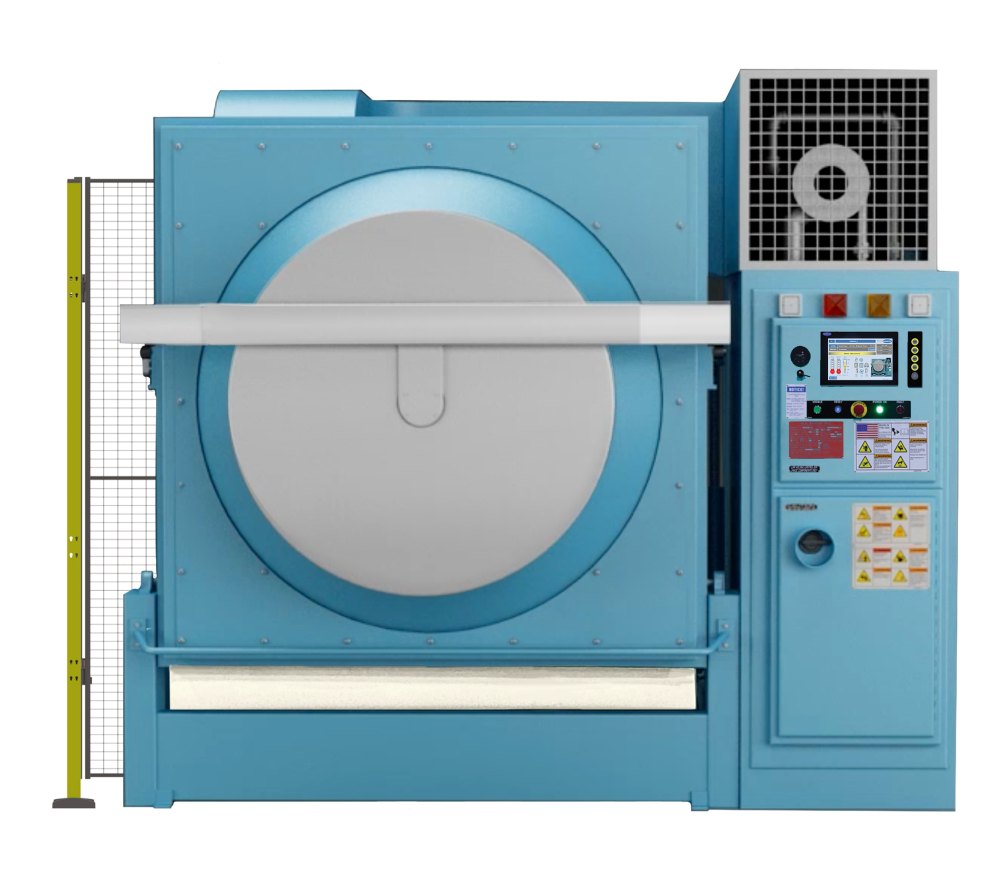

Braun’s 123H dryer offers capacity up to 425 lbs. and is favored among linen suppliers, healthcare, hospitality and industrial plants where 400 lb. loads are the standard. Special features include longer heat travel for most uniform heat input in the industry and an easy changeable track-type basket seal.

Efficiency and Economy

Inverter controlled basket to minimize wear and tear on drive components and maximize efficiency
Automatic temperature-based moisture sensing control prevents restarts and over-drying
Ring burner design assures uniform heat distribution with lint-free design and no moving parts
Heavy 11 –gauge burner duct system evenly mixes incoming air to prevent hot spots
Damper system accelerates heat transfer into load, lowering exhaust volume and temperature
Self-cleaning positive air flow blowers draw controlled air volume through the load, regardless of size. Non-clog design prevents lint accumulation.
All Braun dryers feature a reversing capability (standard), which prevents long items such as sheets or mats from becoming tangled or roping.

Ease of Use

Large door opening, hydraulic tilt system (back tilt of 20° or more, forward tilt up to 18°) and basket jog switch facilitate fast and efficient loading and unloading.

123H Steam Dryer

The steam model features 3 steam coils to provide maximum heat transfer to the inlet air, which minimizes dry times.
Damper provides precise temperature control

Safety

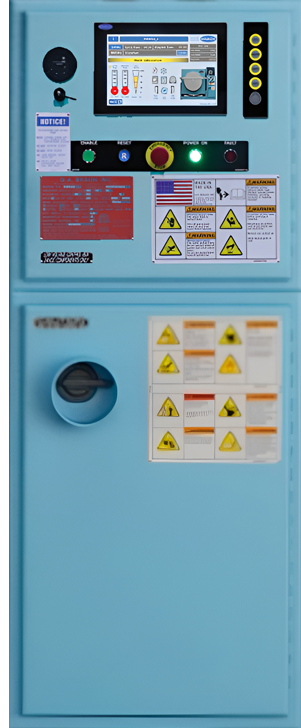

Split panel control box is an exceptional safety feature which separates the high voltage from low voltage components.
Complete flame safety protection system.
Door and tilt switches prevent startup unless machine is in proper running position with door closed.
Individual motor starters provide protection for each motor. Interlocks assure instantaneous burner lockout.
Pressure type safety switch prevents burner ignition without exhaust and combustion blowers operating.
Adjustable high limit temperature control cuts burner fuel supply (basket and blower remain operational to cool load).
Shaft safety system shuts off fuel supply to burner if basket stops rotating (blower remains operational to cool load).
Automatic fire suppression system is standard on all Braun dryers.

Plug and Play Wire Harness

If a component should need replacement, simply loosen the harness collar and pull to free the connection. Installation is just as simple.
Swing-out control box and large doors provide easy access to all harnesses and internal components.
Other manufacturers use hard wired connections that require time-consuming disconnect and reconnect procedures.

Other Notable Features

Optional basket panel coatings are available
Machine can be easily disassembled into smaller pieces to fit into tight locations

Touch Screen Controls

Simple, intuitive, and easy to use touch screen controls
Load
Unload
Start
Cool
Conveniently located usb flash drive to simplify program loading and backup.
